How to measure the differential pressure of a gear pump?

Hey there! As a gear pump supplier, I often get asked about how to measure the differential pressure of a gear pump. It's a crucial aspect of ensuring the proper functioning and efficiency of these pumps. So, let's dive right in and explore this topic in detail.

First off, what exactly is differential pressure? Well, it's the difference in pressure between two points in a system. In the case of a gear pump, we're usually interested in the difference between the inlet pressure and the outlet pressure. This differential pressure tells us a lot about how the pump is performing and whether it's operating within the desired parameters.

Now, why is measuring differential pressure so important? For starters, it helps us determine the pump's efficiency. If the differential pressure is too low, it could mean that the pump isn't delivering enough flow or that there's a problem with the pump itself, like a worn-out gear or a leak. On the other hand, if the differential pressure is too high, it could indicate a blockage in the system or excessive resistance, which can put unnecessary strain on the pump and lead to premature failure.

So, how do we measure the differential pressure of a gear pump? There are a few different methods, and I'll go over the most common ones here.

Method 1: Using Pressure Gauges

One of the simplest and most straightforward ways to measure differential pressure is by using pressure gauges. You'll need two pressure gauges: one installed at the inlet of the pump and another at the outlet.

Here's how you do it:

1. First, make sure the pump is turned off and the system is depressurized. This is important for safety reasons and to get accurate readings.
2. Install the inlet pressure gauge at the pump's inlet port. You can use a threaded fitting to connect the gauge securely.
3. Next, install the outlet pressure gauge at the pump's outlet port in the same way.
4. Once the gauges are installed, turn on the pump and let it reach its normal operating speed.
5. Read the pressure values on both gauges. The differential pressure is then calculated by subtracting the inlet pressure from the outlet pressure.

For example, if the inlet pressure gauge reads 10 psi and the outlet pressure gauge reads 50 psi, the differential pressure is 50 - 10 = 40 psi.

It's important to note that pressure gauges need to be calibrated regularly to ensure accurate readings. Also, make sure to choose gauges with a suitable pressure range for your application.

Method 2: Using a Differential Pressure Transmitter

Another option is to use a differential pressure transmitter. This device measures the difference in pressure between two points directly and converts it into an electrical signal, which can then be displayed on a control panel or logged for further analysis.

Here's how it works:

1. Mount the differential pressure transmitter between the inlet and outlet ports of the pump. The transmitter has two pressure connections: one for the inlet pressure and one for the outlet pressure.
2. Connect the transmitter to a power supply and a data acquisition system or control panel.
3. Once the system is set up, turn on the pump and let it run. The transmitter will measure the differential pressure and send the corresponding electrical signal to the display or logging device.

Differential pressure transmitters offer several advantages over pressure gauges. They're more accurate, can provide continuous real-time measurements, and can be integrated into automated control systems. However, they're also more expensive and require more technical expertise to install and maintain.

Factors Affecting Differential Pressure

There are several factors that can affect the differential pressure of a gear pump. Understanding these factors can help you troubleshoot problems and optimize the pump's performance.

Viscosity of the Fluid

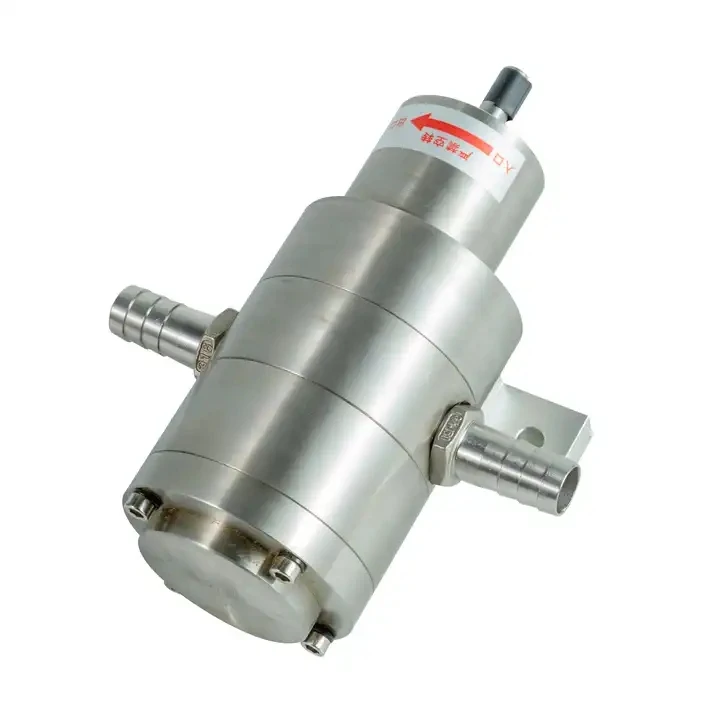

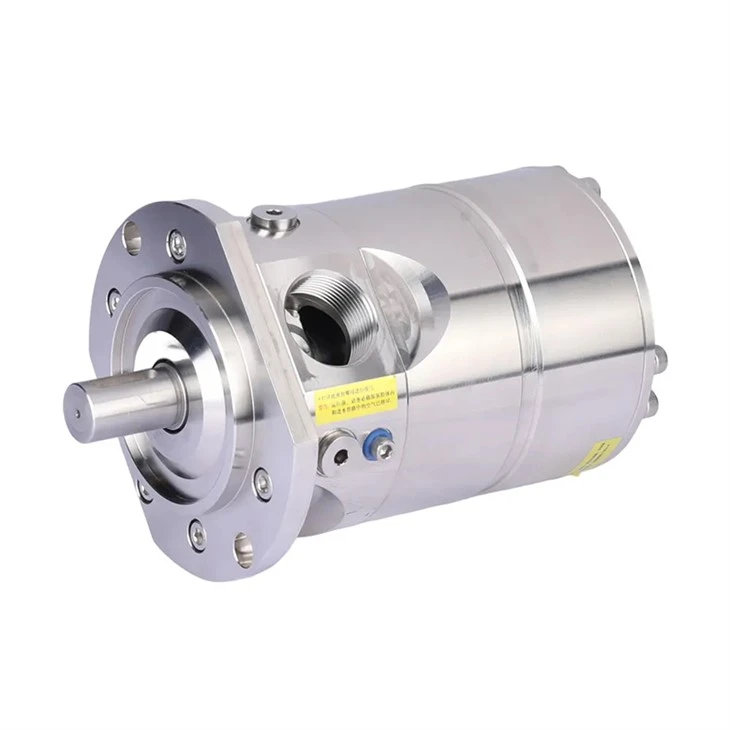

The viscosity of the fluid being pumped plays a significant role in determining the differential pressure. Higher viscosity fluids require more energy to pump, which can result in a higher differential pressure. For applications involving high viscosity fluids, you might want to consider using a High Viscosity Gear Pump. These pumps are designed to handle thick fluids more efficiently and can help maintain a stable differential pressure.

Pump Speed

The speed at which the gear pump operates also affects the differential pressure. Generally, increasing the pump speed will increase the flow rate and the differential pressure. However, there's a limit to how fast the pump can run, as excessive speed can cause cavitation, which can damage the pump and reduce its efficiency.

System Resistance

The resistance in the system, including the length and diameter of the pipes, the number of fittings, and any filters or valves, can also impact the differential pressure. A higher system resistance will result in a higher differential pressure. If you're experiencing high differential pressure due to system resistance, you might need to check for blockages or consider upgrading the piping or components.

Pump Wear and Tear

Over time, the gears and other components of the gear pump can wear out, which can affect the pump's performance and the differential pressure. Worn gears can cause internal leakage, which reduces the pump's efficiency and can lead to a lower differential pressure. Regular maintenance and inspection of the pump can help identify and address any wear and tear issues.

Troubleshooting Differential Pressure Problems

If you're experiencing problems with the differential pressure of your gear pump, here are some steps you can take to troubleshoot:

1. Check the Pressure Gauges or Transmitter: Make sure the gauges or transmitter are working properly and providing accurate readings. If necessary, recalibrate or replace them.
2. Inspect the System for Blockages: Look for any blockages in the pipes, filters, or valves. Clear any debris or obstructions that you find.
3. Check the Pump for Wear and Tear: Examine the gears, seals, and other components of the pump for signs of wear. Replace any worn parts as needed.
4. Adjust the Pump Speed: If the differential pressure is too high or too low, try adjusting the pump speed within the recommended range.
5. Evaluate the Fluid Viscosity: Make sure the fluid being pumped has the appropriate viscosity for the pump. If the viscosity is too high or too low, it can affect the differential pressure.

Conclusion

Measuring the differential pressure of a gear pump is an essential part of ensuring its proper operation and efficiency. By using pressure gauges or differential pressure transmitters, you can accurately monitor the differential pressure and take appropriate action if any problems arise.

As a gear pump supplier, we offer a wide range of high-quality gear pumps, including High Viscosity Gear Pump, Sanitary Gear Pump, and Spur Gear Pump. If you have any questions about measuring differential pressure or need help choosing the right pump for your application, don't hesitate to reach out. We're here to assist you with all your gear pump needs. Whether you're looking to purchase a new pump or need advice on maintenance and troubleshooting, we're just a message away. Let's start a conversation and find the best solution for your business!
