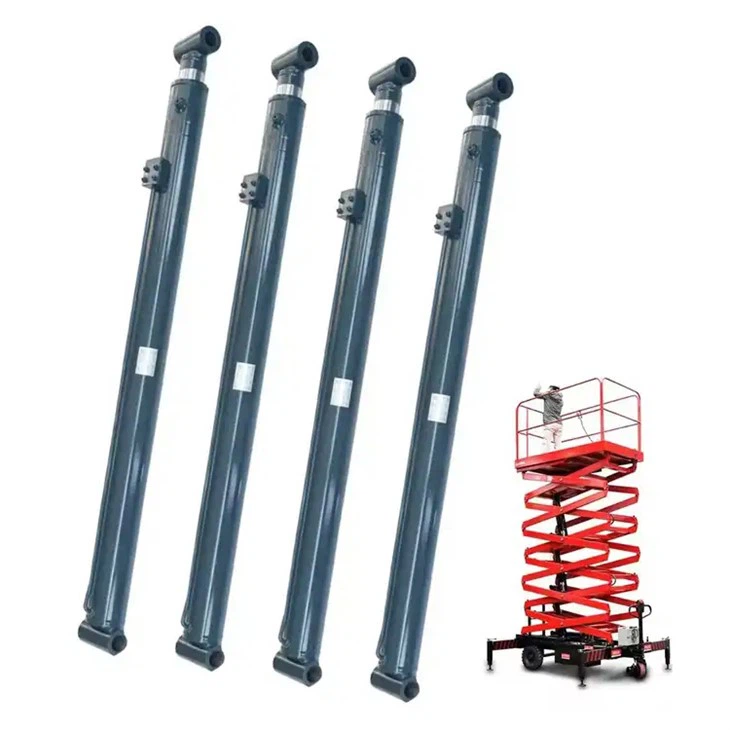

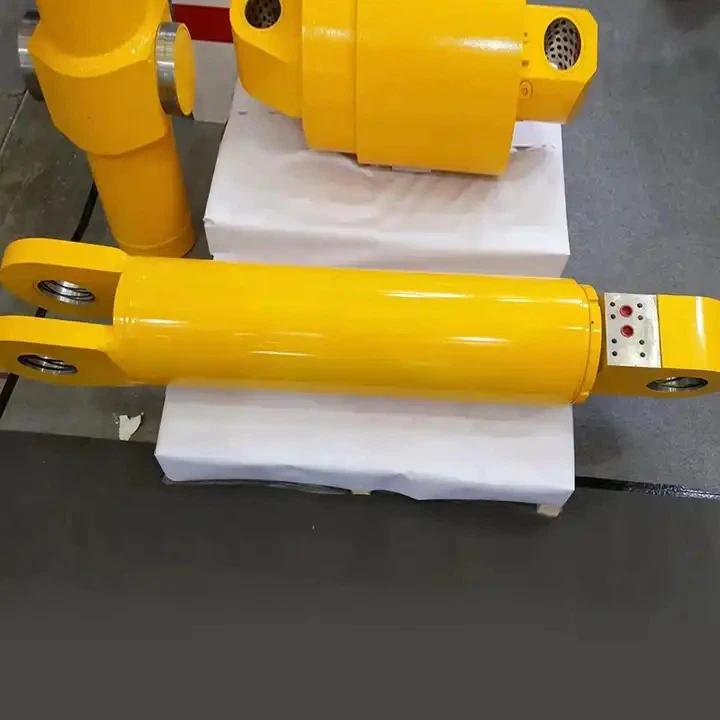

Single Acting Cylinder
The single acting cylinder is a versatile hydraulic or pneumatic actuator designed to provide linear motion and force in one direction, making it ideal for applications where force is only needed in a single direction. It features a simple yet efficient design, with hydraulic fluid entering through a single port to extend the piston. The return stroke is typically achieved by an external force such as a spring or gravity. This design not only simplifies the mechanism but also reduces the number of components, enhancing reliability and ease of maintenance.
Product Introduction
The single acting cylinder is a versatile hydraulic or pneumatic actuator designed to provide linear motion and force in one direction, making it ideal for applications where force is only needed in a single direction. It features a simple yet efficient design, with hydraulic fluid entering through a single port to extend the piston. The return stroke is typically achieved by an external force such as a spring or gravity. This design not only simplifies the mechanism but also reduces the number of components, enhancing reliability and ease of maintenance.
Single Acting Cylinder - Reliable Linear Motion Solution for Industrial Applications
The single acting cylinder is a high-performance hydraulic or pneumatic component designed for applications requiring simple, efficient linear motion in one direction. Engineered for durability and reliability, this single acting cylinder operates with fluid pressure acting on one side of the piston while using an external force (such as gravity or a spring) for return movement. Ideal for cost-effective systems where unidirectional force is sufficient, our single acting cylinder delivers consistent performance in various industrial environments.
Key Features & Benefits
1. Compact & Lightweight Design: Easy to install and integrate into existing systems
2. Cost-Effective Operation: Requires less hydraulic fluid and simpler control systems compared to double-acting cylinders
3. Reliable Performance: Robust construction with high-quality materials ensures long service life
4. Low Maintenance: Minimal moving parts reduce wear and servicing needs
5. Versatile Applications: Suitable for clamping, lifting, pressing, and positioning tasks
Technical Specifications
|
Bore Sizes |
Ranging from 25mm to 200mm (custom sizes available) |
|
Stroke Length |
Up to 1000mm (adjustable based on requirements) |
|
Pressure Rating |
Up to 250 bar (hydraulic) / 10 bar (pneumatic) |
|
Mounting Options |
Flange, clevis, foot, or threaded mounts |
|
Seals & Materials |
Nitrile, polyurethane, or Viton seals; chrome-plated rods for corrosion resistance |
Common Applications
Industrial Machinery: Presses, ejectors, and automation systems
Material Handling: Lifting gates, conveyor stops, and packaging equipment
Agriculture & Construction: Hydraulic lifts, compactors, and braking systems
Automotive: Clamping devices and assembly line tools
Each single acting cylinder undergoes rigorous testing for leak resistance, load capacity, and endurance to ensure compliance with ISO 6020/2 and DIN standards. Optional features include cushioning, magnetic pistons for position sensing, and custom port configurations.
For reliable, cost-efficient linear motion, our single acting cylinder offers an optimal solution. Contact our team today for technical specifications or custom requirements tailored to your application.
